Transition Ramp/Edge Details

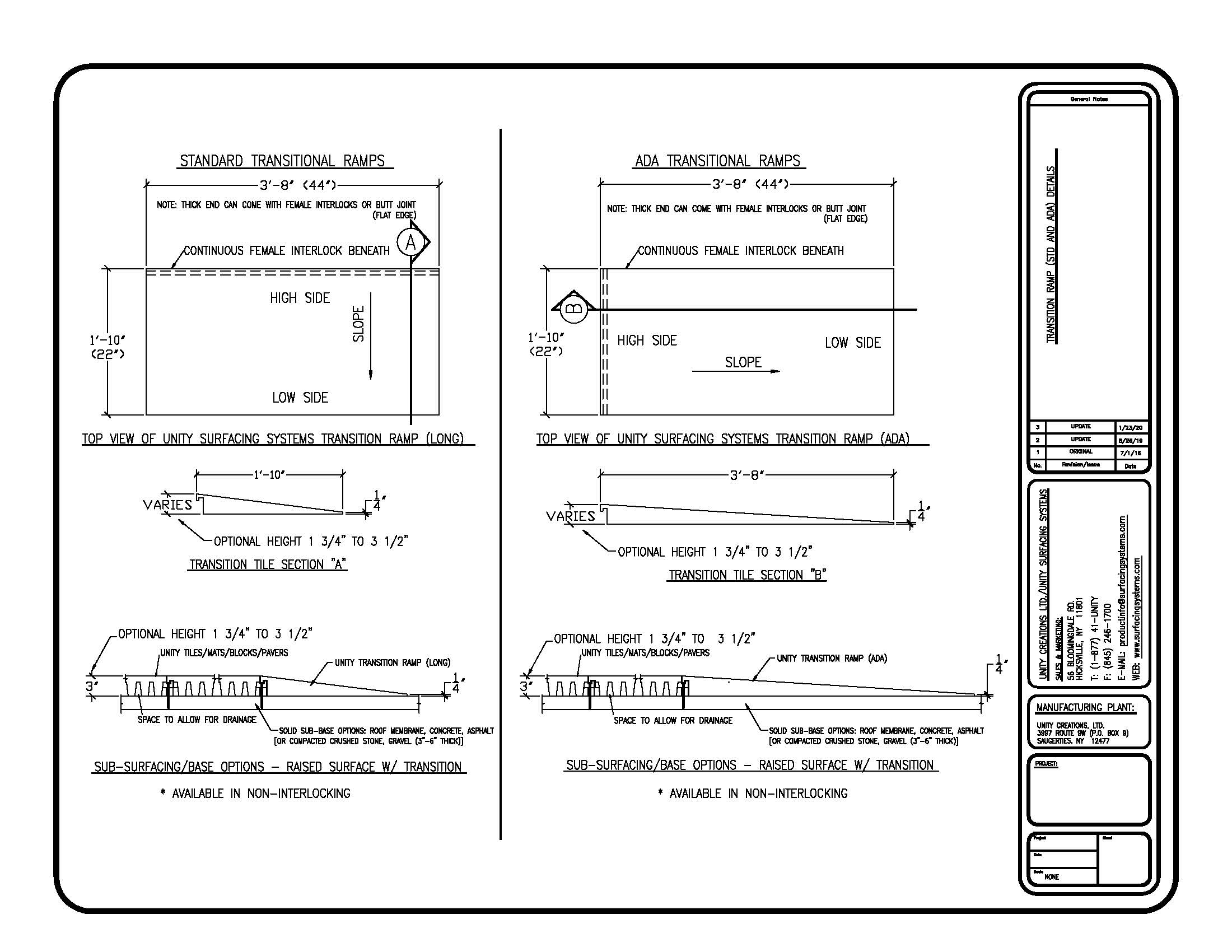

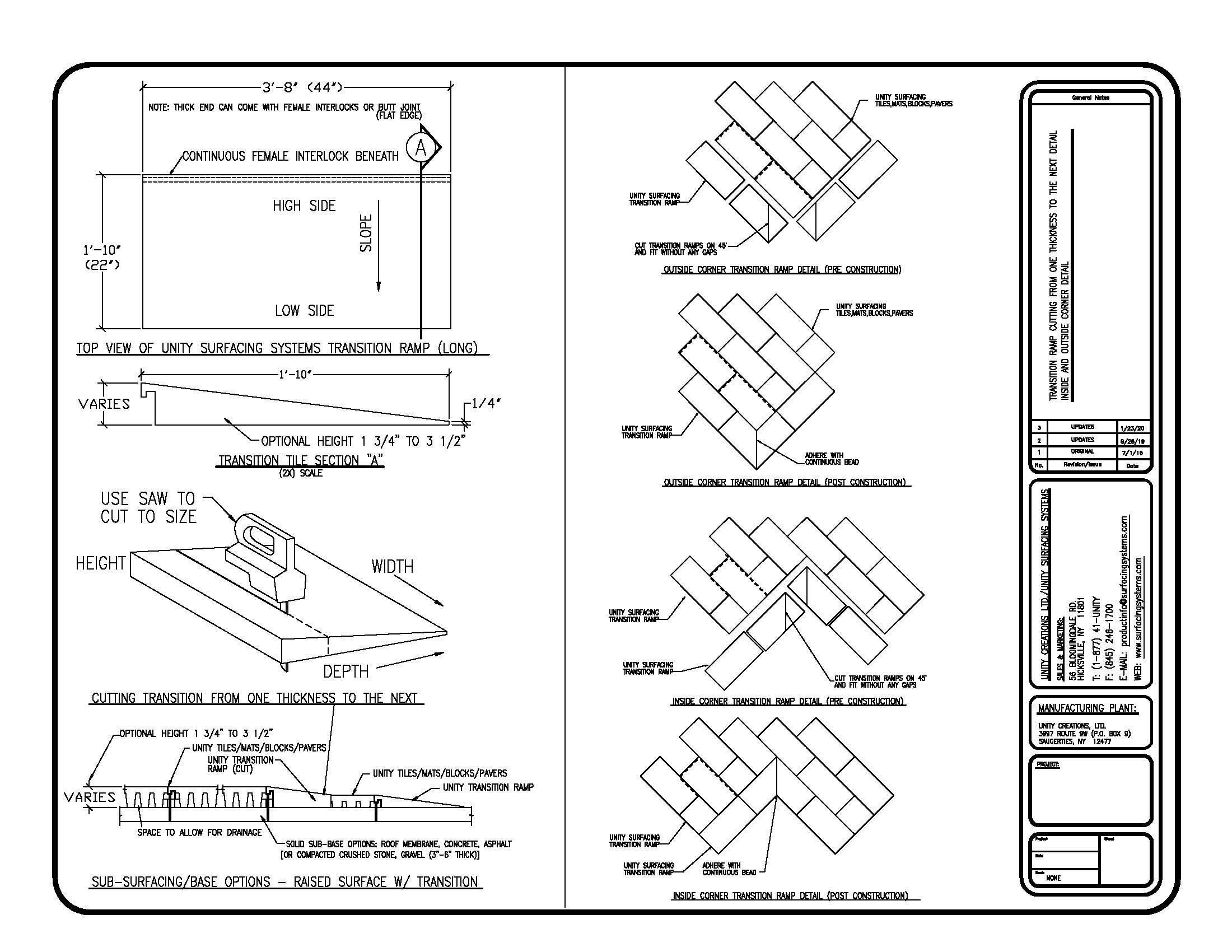

UNITY'S Transtion Ramp Detail - Long & ADA 8.5X11 UNITY'S Transition Ramp Cutting Detail-One to Next-Inside Outside Corners 8.5x11

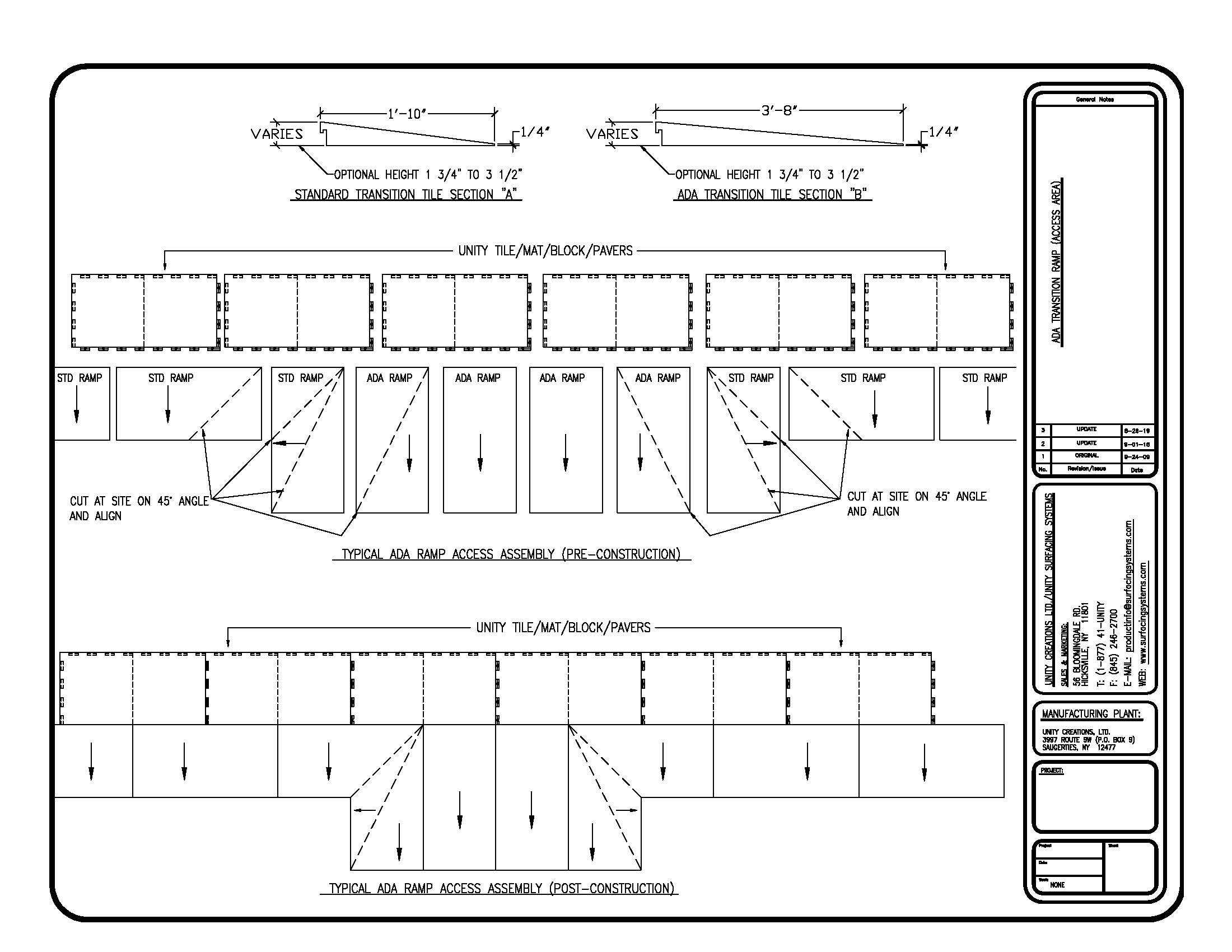

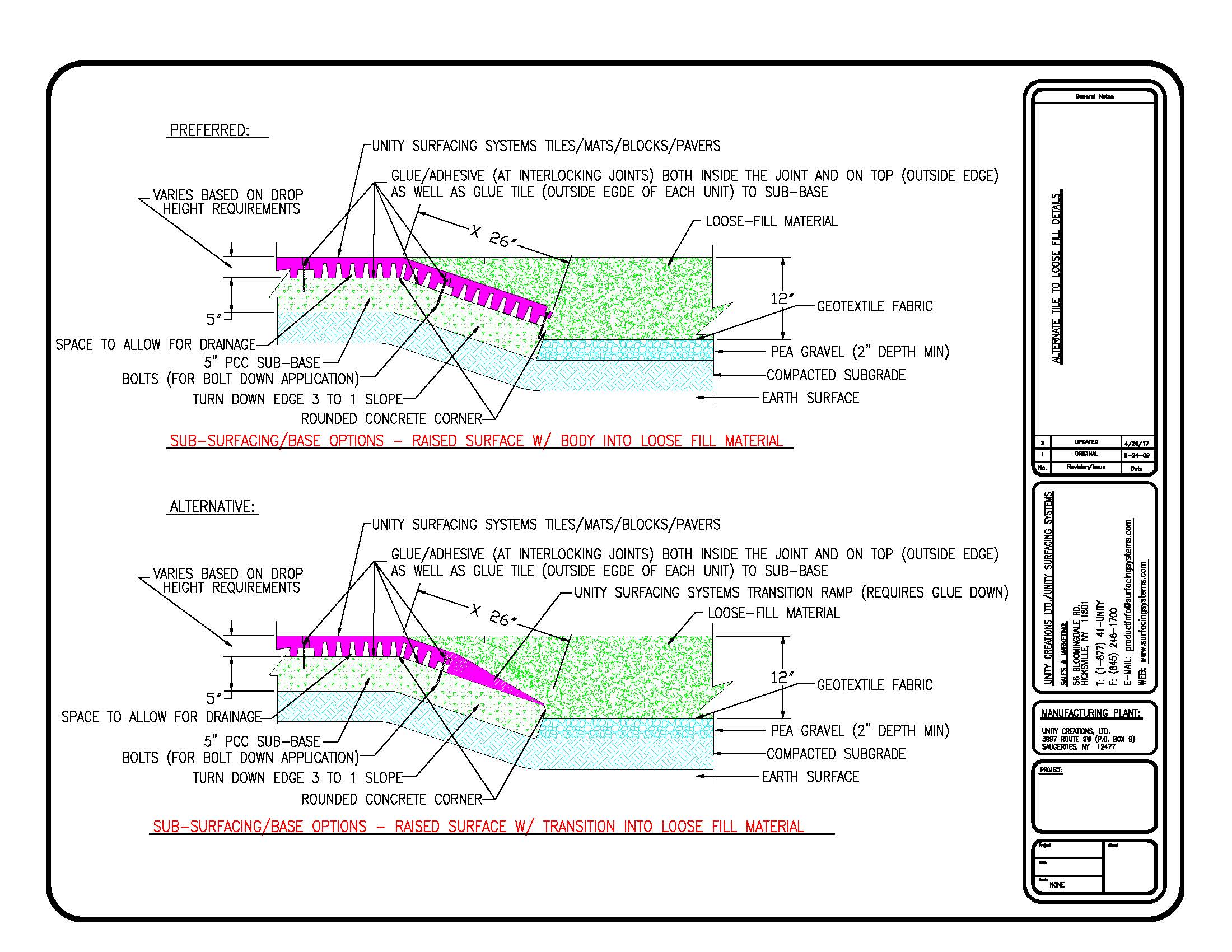

UNITY'S ADA Transition Ramp Access Area 8.5x11 UNITYS Tile To Loose Filled Material Detailed Drawings 8.5X11 for 2017

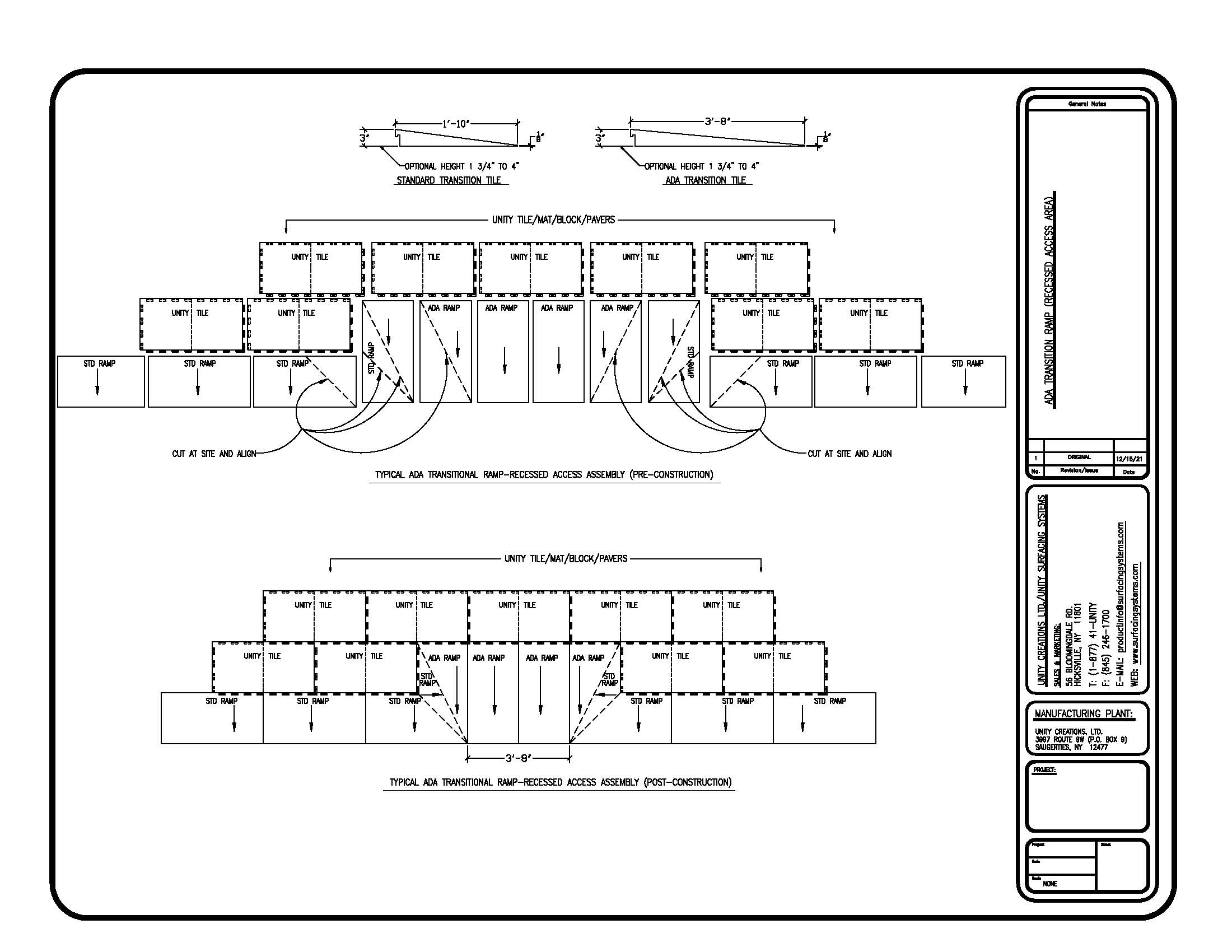

UNITY'S Recessed ADA Transition Ramp Access Area 8.5x11
