Pigmented and Protective Coatings

Designed and developed specifically for us on all of our products and services.

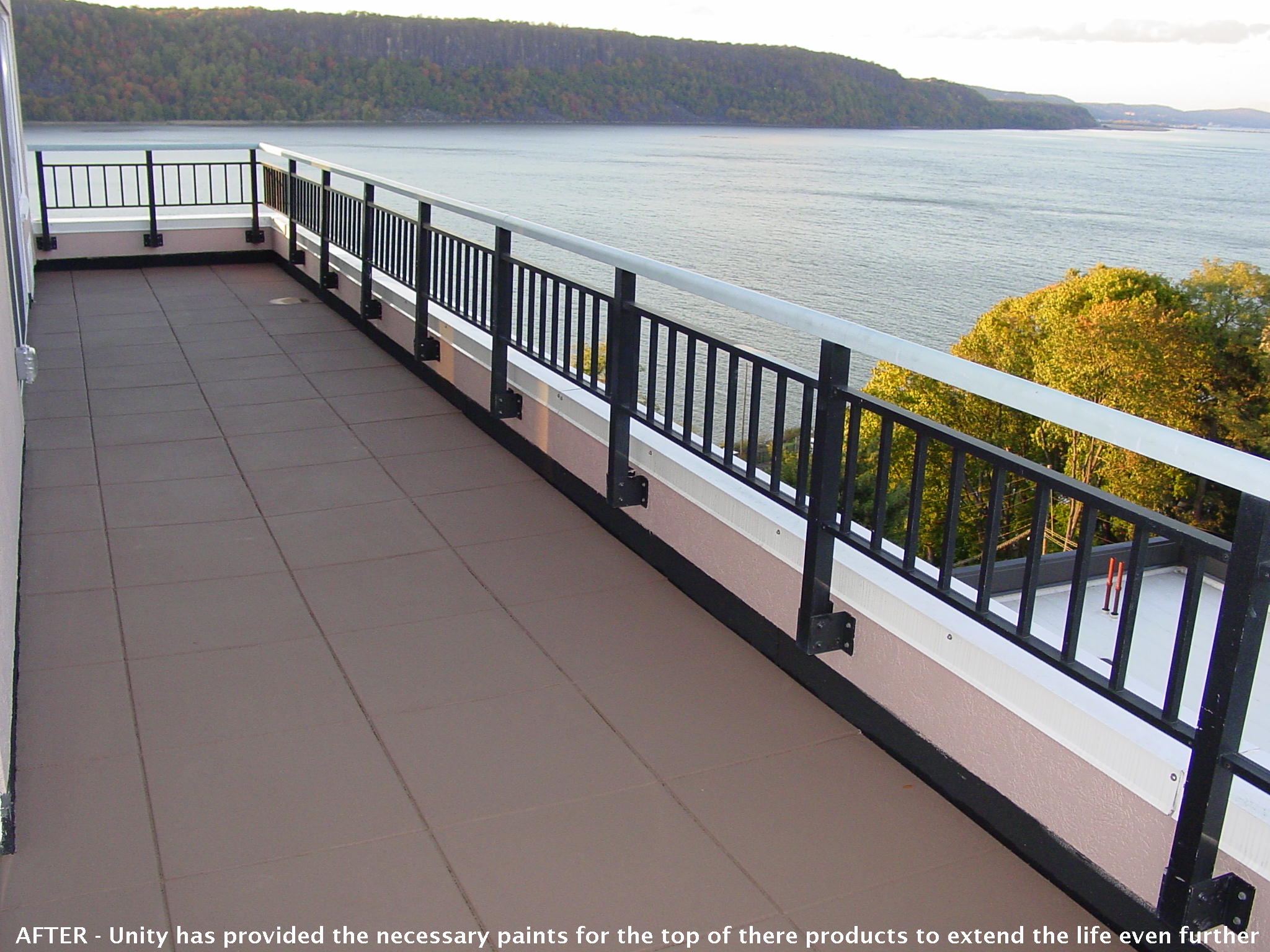

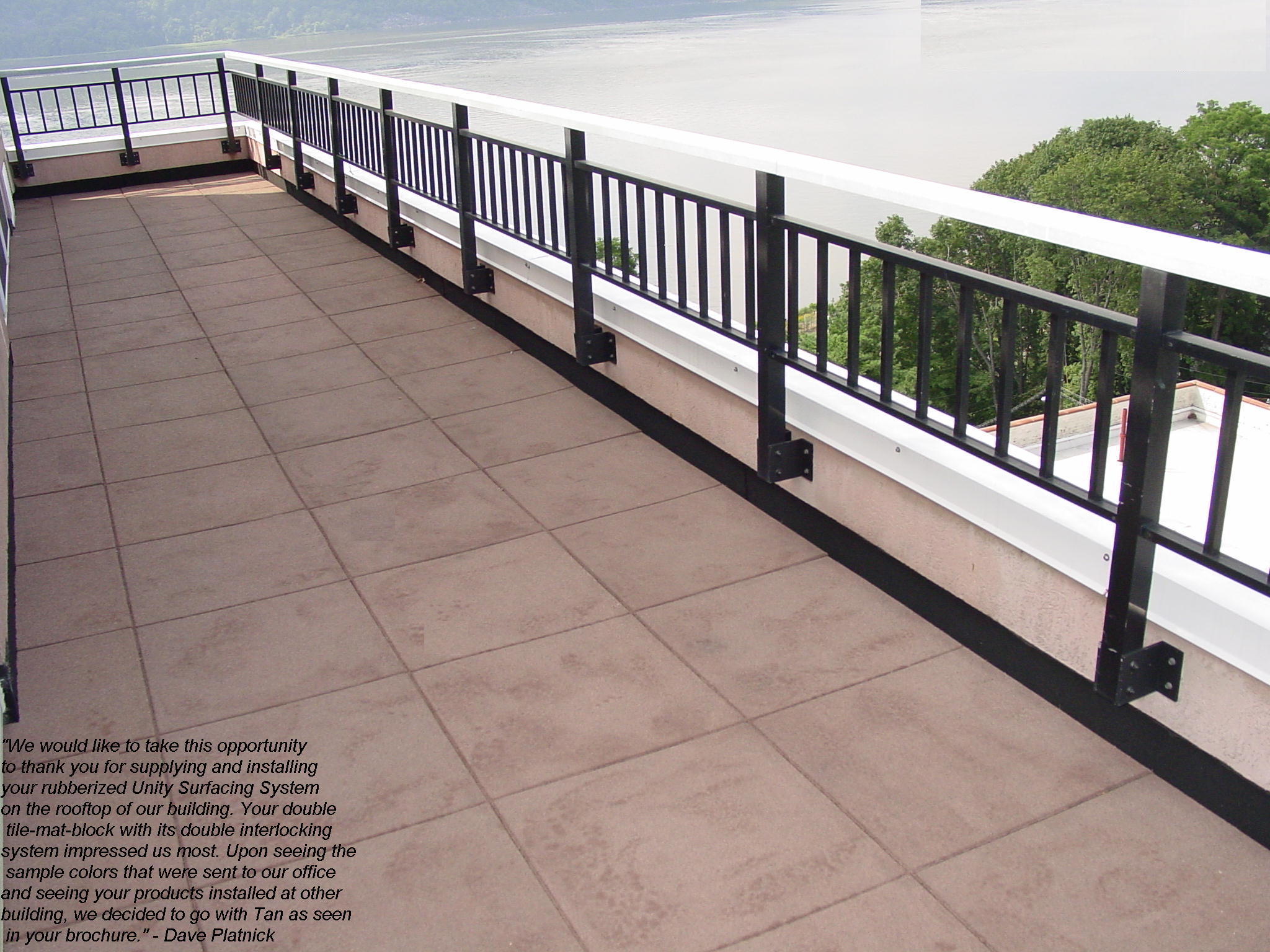

After many years of use, like any other products on the market today, Unity’s products can be painted for a fresh new look. We provide the necessary paints that can be sprayed on or simply rolled on for a brand new look. This application can provide less heat build up and extended life of our products for many more years to come.

WC 44 Paints

WC 44 is a solvent based cyclo-aliphatic urethane based coating. It produces a tough, glossy, hard-wearing and chemically resistant surface for the protection of urethane foam, horizontal concrete and vertical masonry, brickwork and rubber surfaces. WC 44 is available as a transparent, glossy coating or as a pigmented material that possesses excellent hydrolytic stability and ultra-violet radiation resistance as well as high tensile strength.


  • Provides a long service life - Accommodates normal substrate movement and thermal stresses
  • Withstands heavy use and environmental attack
  • Maintains its attractive, clean appearance
  • Easily scrubbed and cleaned



All surfaces to be coated must be clean, dry and completely free of oil, grease, dust, and any other substance that may interfere with adhesion. Add Part ‘B’ color concentrate to the clear Part ‘A’ and stir thoroughly for 3 minutes. WC 44 may be applied by brush, roller or airless spray technique. Apply at a rate of 100 square feet per gallon for the 1st coat and 200 square feet per gallon for the 2nd coat. Care must be taken to avoid creating foam or trapping air which may result in pinholes or hazing. Tools and equipment may be cleaned with xylene.


To repair damaged areas, coarse sanding should be followed by thorough cleaning with fresh water. WC 44 may then be reapplied to the clean, dry surface.


Store in a cool, dry place away from direct sunlight. Avoid opened containers as moisture will cure the material. Do not apply in temperatures below 40°F. Application must be protected from precipitation for at least 4 hours. Shelf life is 12 months when stored in proprietary sealed containers between 45°F and 85°F.


During handling of this product, it is recommended that standard safety equipment such as rubber gloves, chemical splash goggles and coveralls be worn. Avoid contact with skin and eyes. In case of contact, flush with clear water for 15 minutes. In case of eye contact, get immediate medical attention in addition to flushing. Do not ingest. In case of ingestion, do NOT induce vomiting, do seek immediate medical attention. Keep out of reach of children and pets. For more information, call our Technical Department.


Coating Type Two- part aliphatic urethane
VOC 450 gms/liter
Pot Life 3 hours @ 70°F (50% R.H.)
Shelf Life 12 months
Recommended Thickness 4 mils dry film thickness
Coverage 2 coats @ 200 square feet per gallon per coat
Packaging 1 gallon or 5 gallon units
Color A variety of standard colors and custom colors


Flashpoint 110°F FTMS 141A (M4293)
Shore ‘A’ Hardness 95 ASTM D-2240
Tensile Strength 4,500 lb/square inch ASTM D-412
Elongation 10% ASTM D-412
Solids Content 48% (B.W.); 44% (B.V.) ASTM D-1044
Flexibility @ Low Temperatures 180 deg. Bend @ 20°F ASTM C-711
Impact Resistance (4mm indent) No cracking or loss of adhesion BS3900 Part E3
Water Absorption Zero ASTM D570-77
Working Time 3 hours @ 70°F (50% R.H.)
Drying Time 1½ hours @ 70°F (50% R.H.)
Cure Time 24 hours @ 70°F
Exterior Durability Good resistance to UV and harsh weather extremes

NOTICE: The information presented herein is based on tests and data that Unity believes to be reliable. It is intended for use by technically qualified personnel at their own discretion and risk. Since conditions of handling and use are beyond our control, we make no warranties, express or implied, and assume no liability in connection with any use of this information. Nothing herein is to be construed as a license to operate or a recommendation to infringe any patent.
